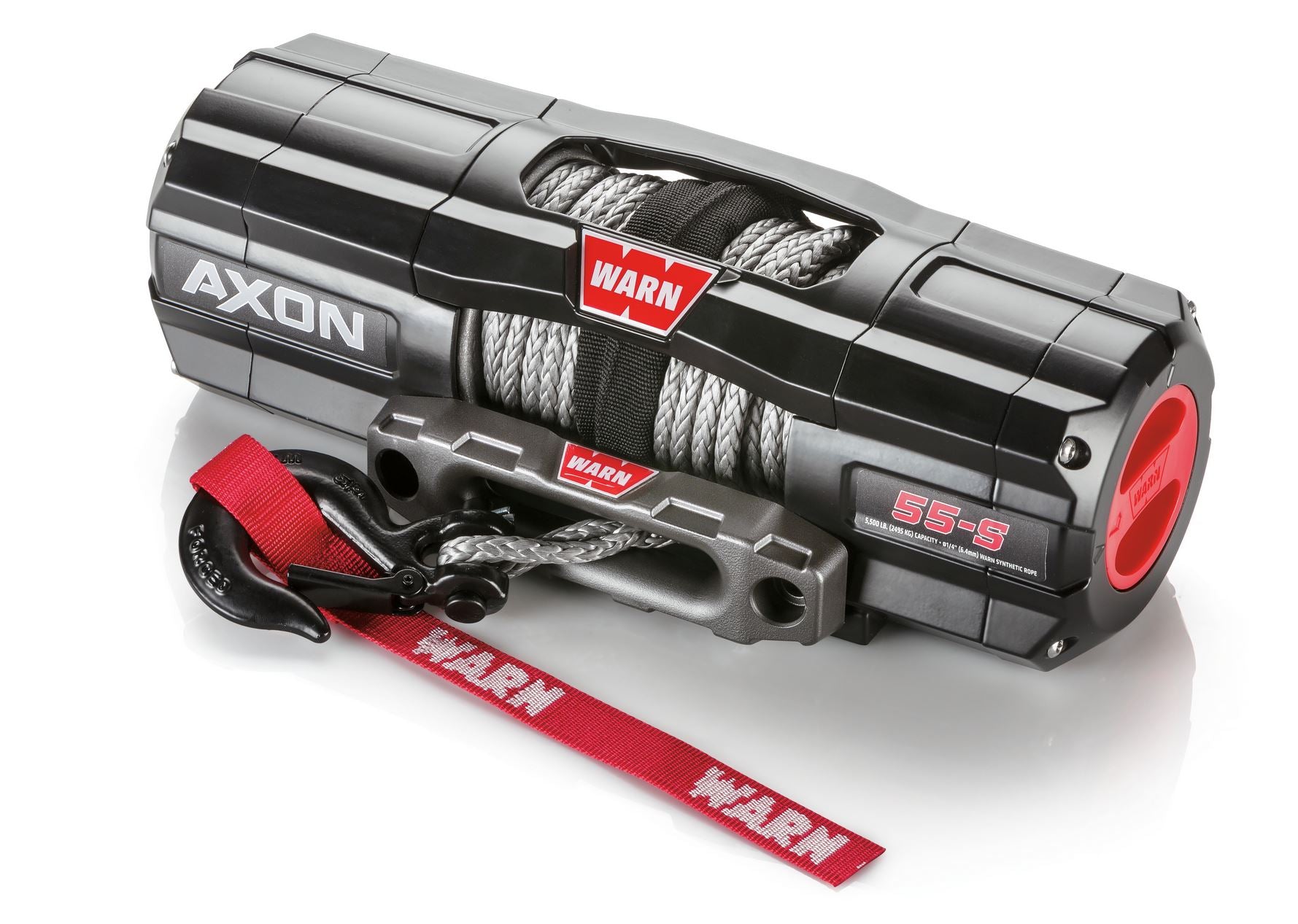

WARN AXON 55-S 5,500lbs Winch - 15m Synthetic Rope *Only 14kgs in Weight!

Warn IndustriesSKU: AXON-55 S-101150
filler

Price:
$1,699

OzJimny's Price Pledge Badge

Seen a better price somewhere else?

Simply hit the Add to Quote Button above, share the link to a competitors website showing the identical product or upload a competitors written quote and we pledge to send you a more competitive quote within 24 business hours.

Description



One of the new Suzuki Jimny's only downfall is the low Gross Vehicle Mass rating from Factory with the recommended 'Load' weights seen below

Manual Transmission Jimny's kerb weight is 1075kg = a maximum of 360kg of additional 'Load' is recommended.

Automatic Transmission Jimny's kerb weight is 1090kg = a maximum of 345kg of additional 'Load' is recommended.

So when you start loading your Jimny up with heavy accessories such as steel Bull Bars, Roof Racks, Extra Fuel and Passengers and Luggage, you fast approach the maximum GVM.  The point being every Kilogram counts, and it can add up fast.  So for those who love testing the off-road capabilities of the Jimny, and want the benefit of feeling secure they can get out of trouble with a winch - then the Warn AXON winch series is something to consider.

Weighing only 14kgs, the AXON 55-S is less than half the weight it's bigger brother the Warn VR EVO 8-S, and has an extremely compact design ensuring it will work in combination with most Winch Mounts & Bull Bars with no modification needed.

OZ Jimny highly recommends you consider the AXON range of winches if you plan on adding a steel bull bar to front of your Jimny.  With most aftermarket bull bars weighing around 35-40 kgs, adding another 30 kgs of winch will greatly increase load over the front axle, putting the drivetrain under immense stress for a lightweight off-roader.

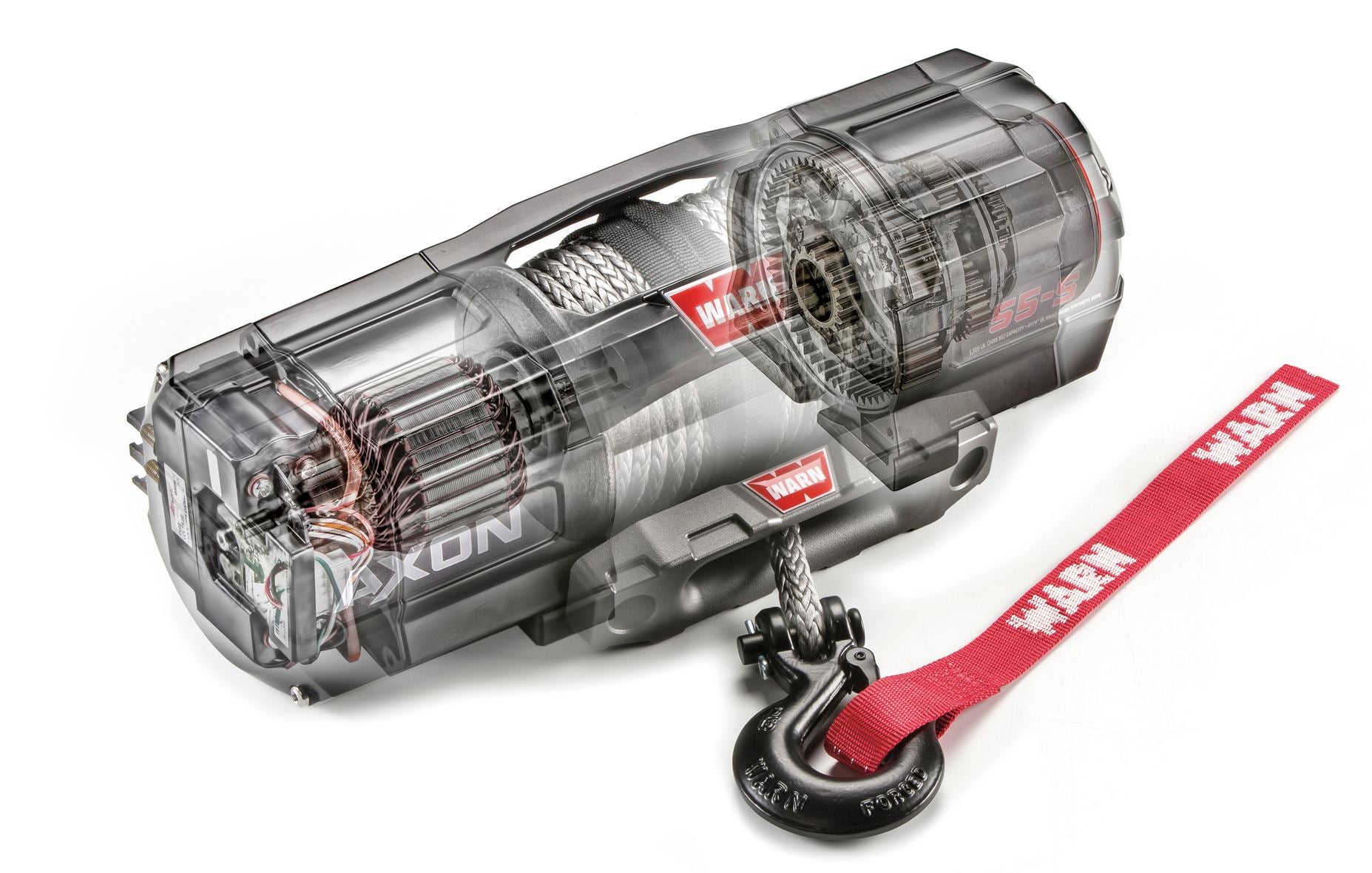

WARN has taken winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor™. The WARN Motactor™ increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. Tech is nothing without durability, so we made AXON the most durable powersports winch ever. All-metal construction, waterproof sealing, and increased structural rigidity are made for extreme environments. It’s smart, tough, and perfect for a wide range of powersports vehicles. Available in 3,500, 4,500, and 5,500 pulling capacities, with a choice of steel or Spydura™ synthetic rope.

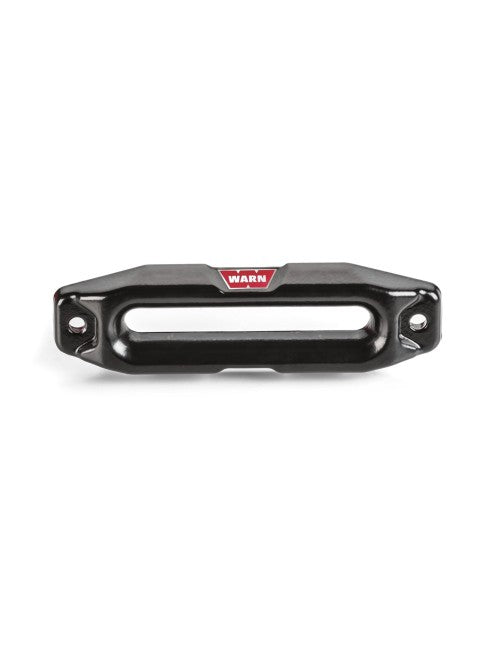

  • AXON 55-S comes with 50’ of lightweight, easy-to-handle ¼” Spydura synthetic rope, an Epic
    hawse fairlead, and a black hook
  • Massive 5,500 lb. capacity for the biggest UTVs and biggest pulls
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • IP68 waterproofing keeps water and the elements out
  • Digital control offers never-beforeseen levels of reliability and user feedback, including providing load and temperature info
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train

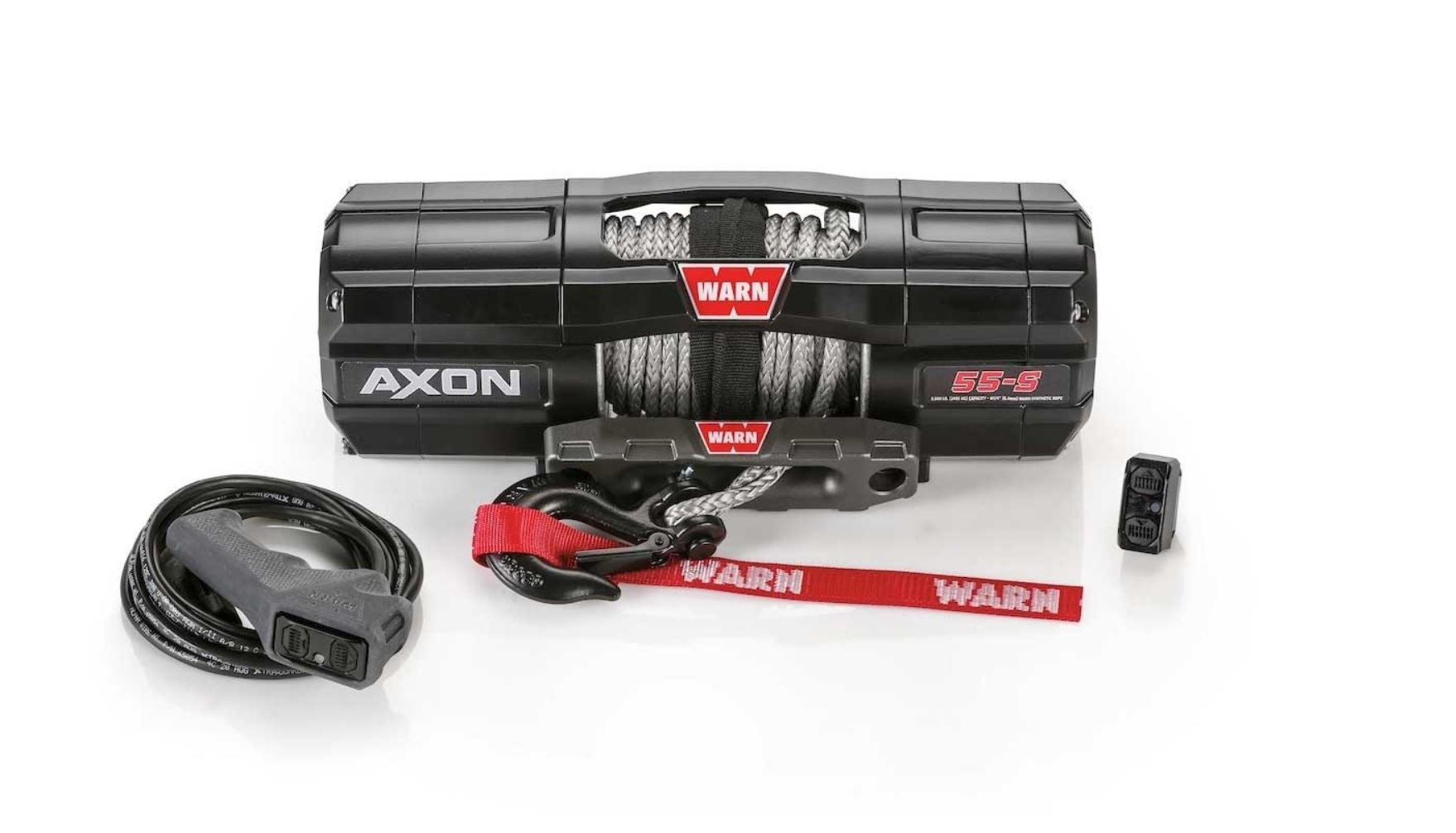

  • Rockerbar digital control switch and digital wired remote
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)

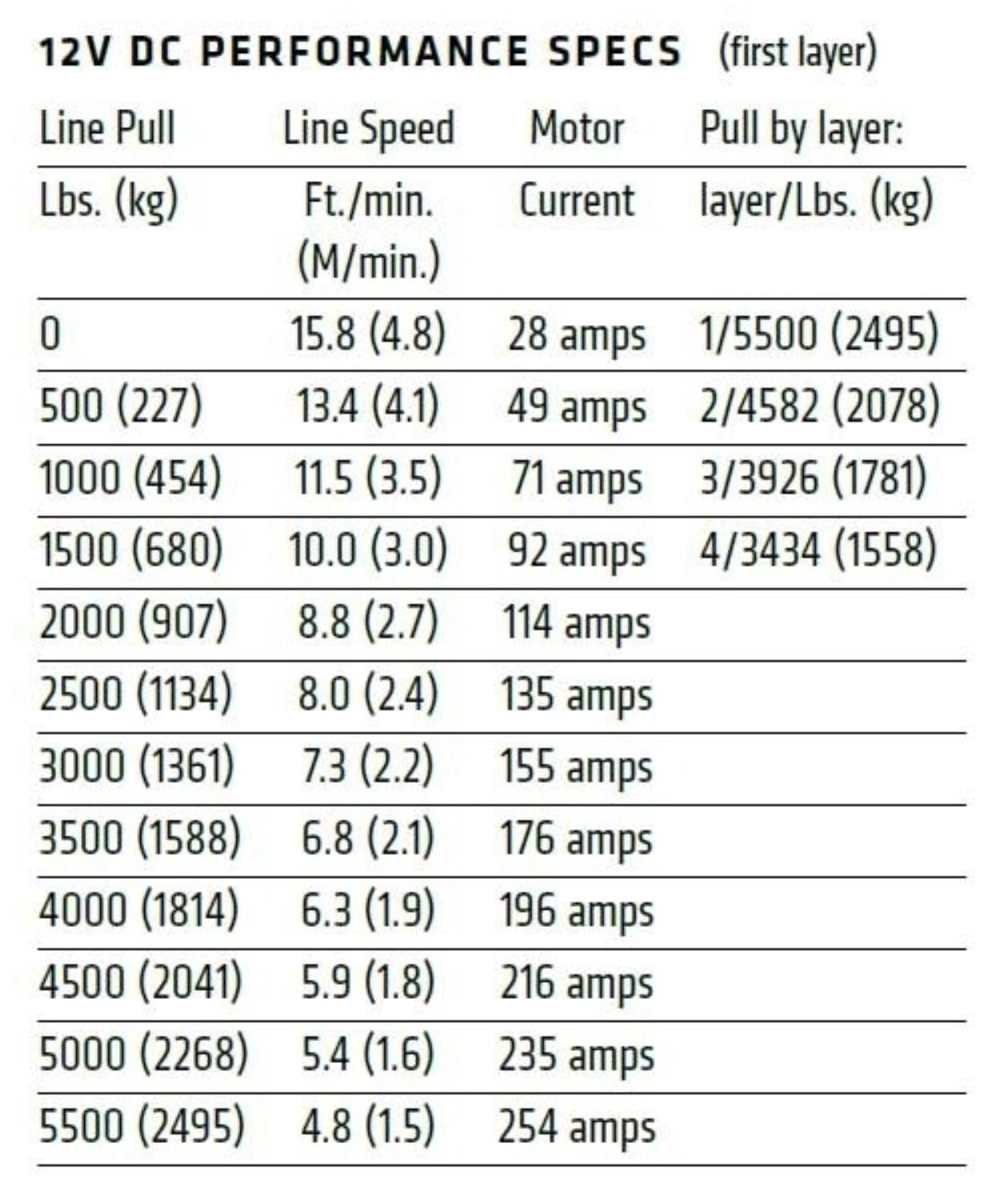

AXON 55-S Specifications:

Winch model: Axon 55-S
Part numbers: AXON-55-S-101150
Rated line pull: 5500 lbs. (2495 kg) single line
Motor: 12V Permanent Magnet
Sealing: IP68 waterproof
Geartrain: 3-Stage Planetary
Rope Material: Synthetic
Rope length & diameter: 50′ x 1/4″ (15m x 6.3mm)
Primary Control: Rockerbar digital control switch
Remote Control: Digital corded remote
Brake: Mechanical brake
Mechanical Warranty: Limited lifetime
Electrical Warranty: 3 Year
