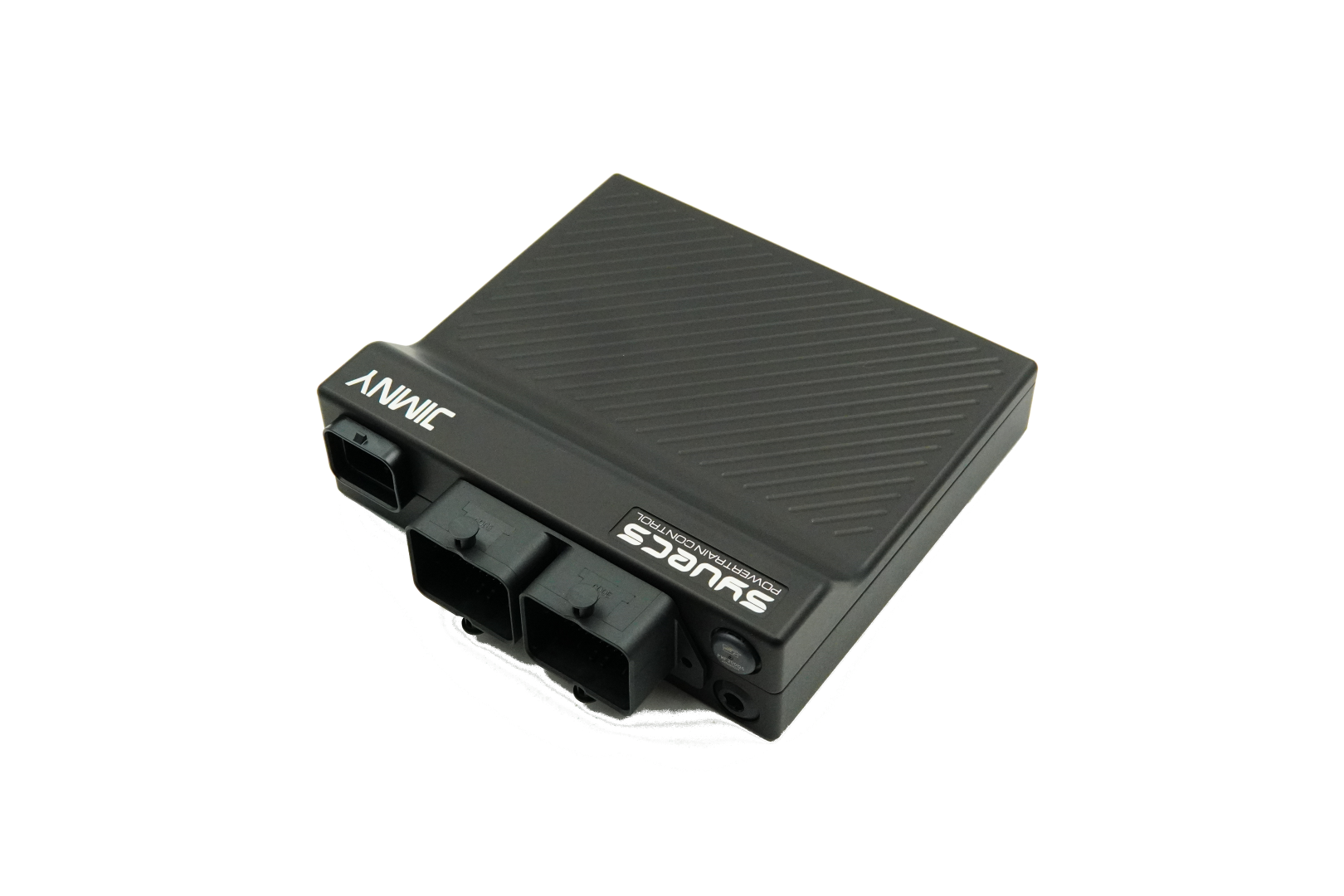

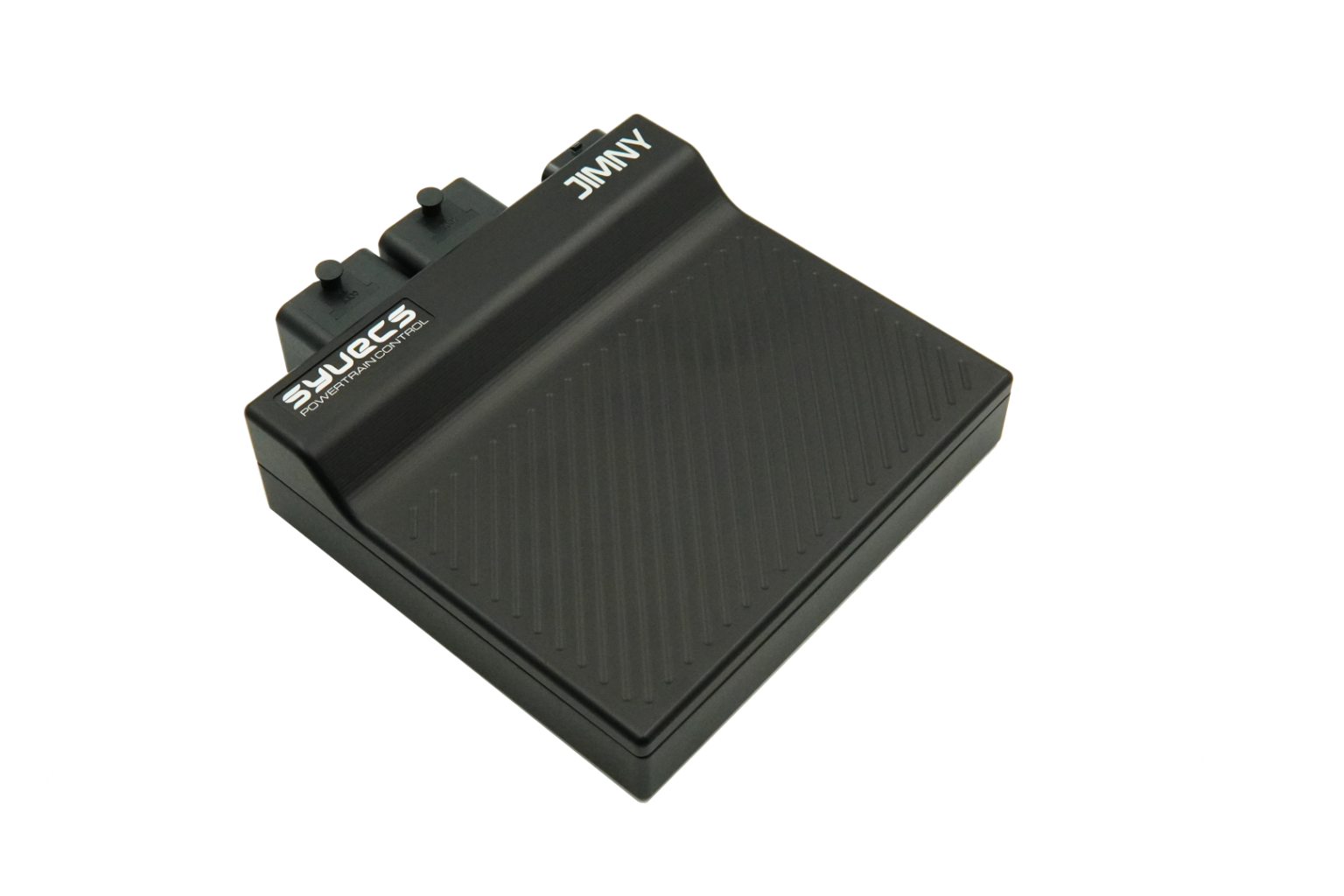

SYVECS Plug-In Performance Standalone ECU (Jimny Models 2018-Current XL 5-Door, GLX & Lite 3-Door)

SyvecsSKU: S7i- JimnyDF
filler

Price:
$7,998
 Available now learn more


OzJimny's Price Pledge Badge

Seen a better price somewhere else?

Simply hit the Add to Quote Button above, share the link to a competitors website showing the identical product or upload a competitors written quote and we pledge to send you a more competitive quote within 24 business hours.

Description

The Syvecs Suzuki Jimny Plug-In Performance Standalone ECU brings a new level of engine management control to the Suzuki Jimny range for all manner of aftermarket forced induction applications, available for the Manual and also Automatic Transmissions.

The Syvecs Plug-In kit comes complete with:

-NTK Lambda Sensor

-NTK Loom

-4Bar Map Sensor

-Air Charge Temperature Sensor

By simply plugging in the kit, a whole new level of control is available which allows turbo and supercharger installations to be safely managed and controlled.

Syvecs Jimny Features:

- Flat Shift/GearCut On Manual Transmission. Allowing Full throttle shifts

- Rev matching on downshift with manual transmission

- Support for automatic transmission with monitoring of line pressure and custom torque reductions.

- Flex Fuel control.

- Fully functional with every other module on the Car.

- 8 Injector support

- Forced induction support, requires External Map sensor and Air Charge Temp sensor

- Closed loop Lambda control using supplied NTK Lambda

- DBW support with cruise control (Option only if the correct parts are fitted)

- Rolling antilag / pit lane limiter strategies, great for building boost on a roll.

- Adjustable traction control strategies based on lateral G and individual wheel speed monitoring.

- Adjustable launch control.

- Limp Protection strategies

- 12 switchable maps with the ability to select desired engine map, boost level, traction and launch control levels through optional rotary switch

- Individual Cylinder Knock control

- Live tuning of every aspect of the engine’s calibration.

- Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temps etc..

- Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.

- Anti-theft and valet modes.

- Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to one of our Wifi modules.

- Configurable engine safety trips on all important parameters like oil temperature, oil pressure.

- Fuel pump control of both main, and sub pumps, as well as relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.

- Run up to 7bar map sensors.

- Control high or low impendence injectors.

- Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position.

- Ability to use any size DBW throttle body e.g. Chevrolet LS7.

- Wet and Dry – Wet and dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.

- Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.

- Connect any race series dash or even one of our Syvecs edition SDM display units.

- View any input live with built in scope up to 1000hz.

And much, much more!
