Description

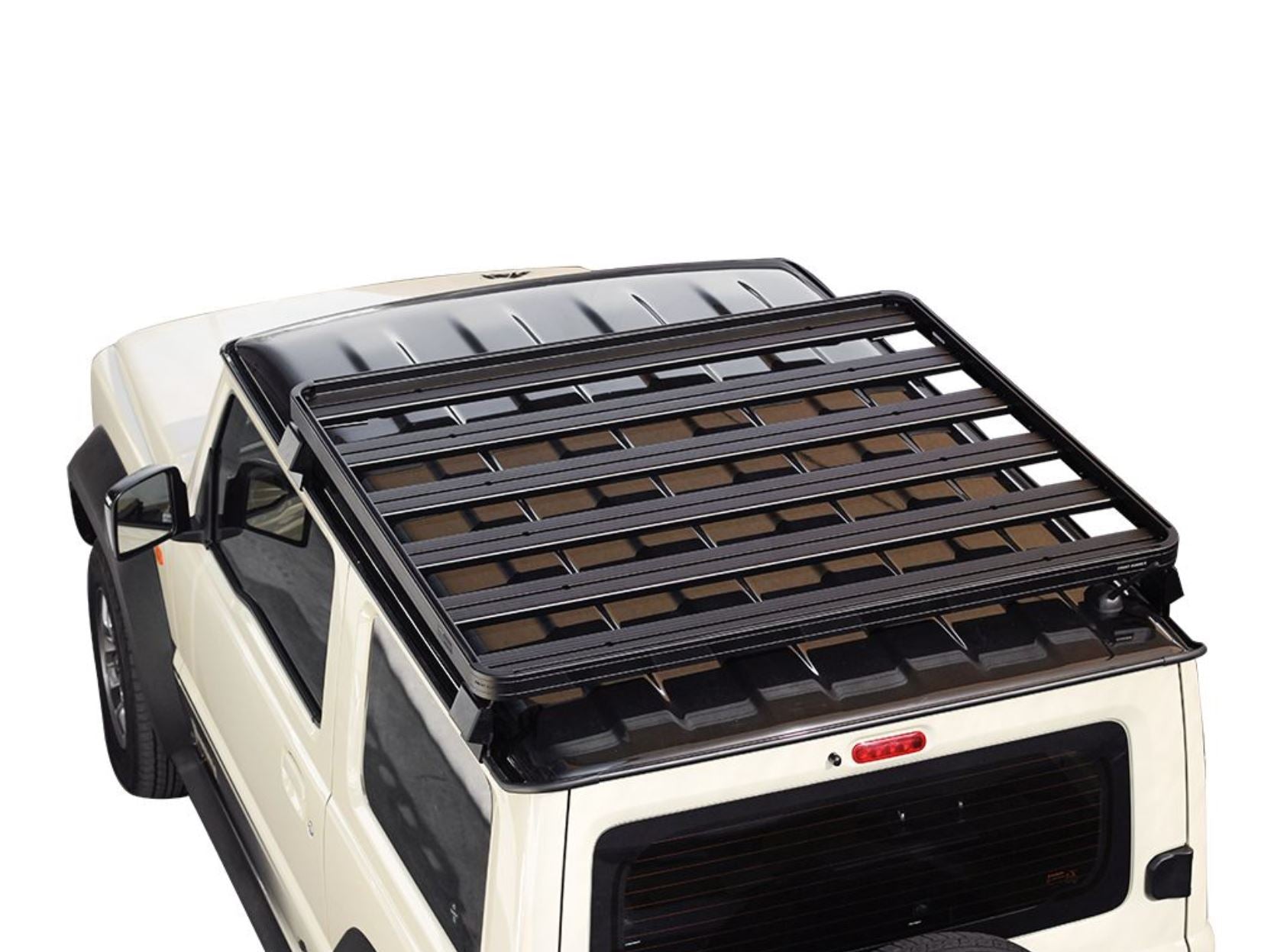

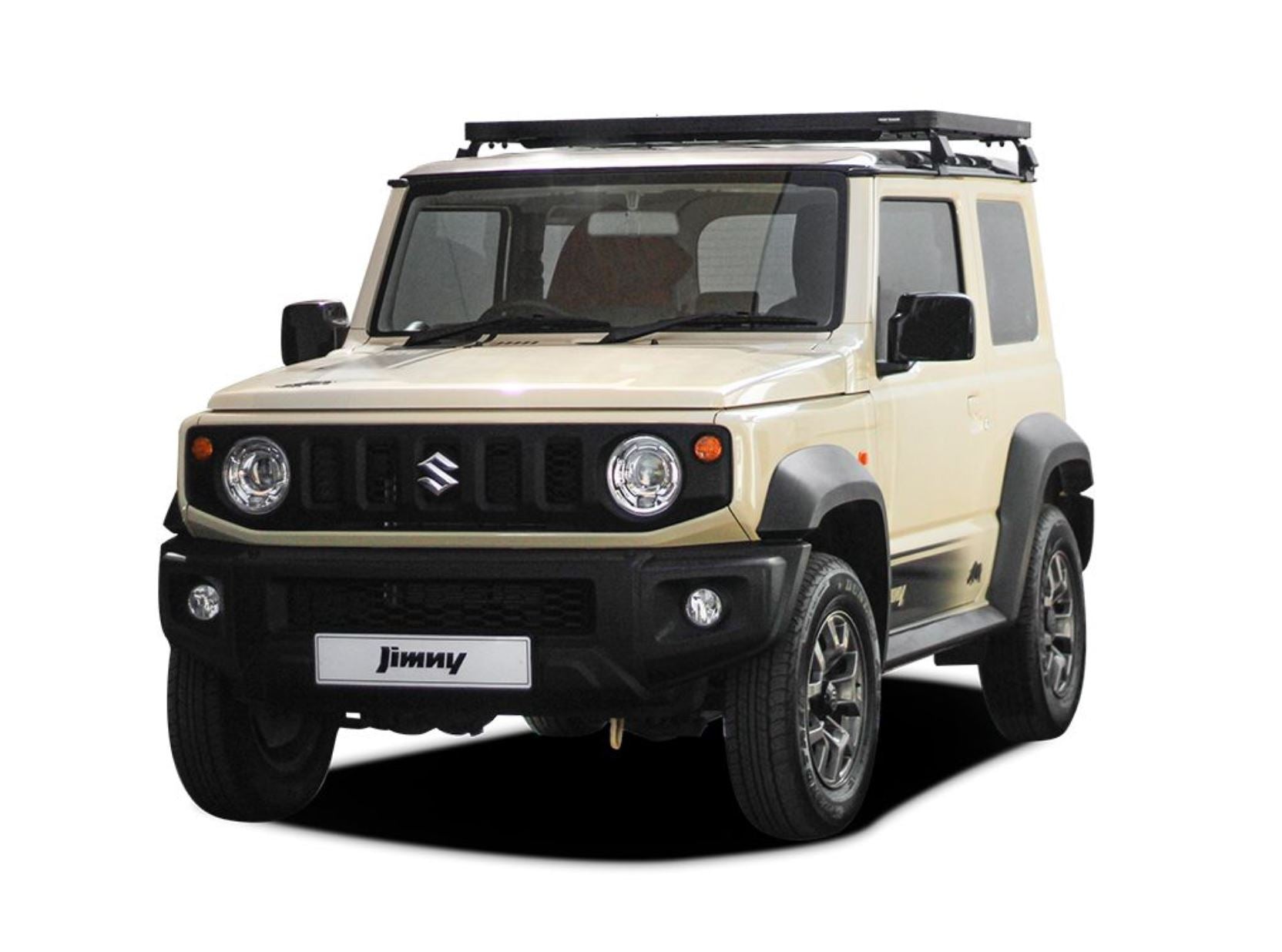

This 1156mm/45.5" long, 3/4 size, Slimline II cargo carrying roof rack kit for the Suzuki Jimny 2018+ contains the Slimline II Tray and Wind Deflector, as well as 4 Gutter Mount Legs for mounting the Tray to the vehicle. Installs easily with no drilling required.
*Can also fit the 2023-Current 5-Door XL Jimny Model if you're wanting a shorter, lighter Roof Rack.
Consisting of:

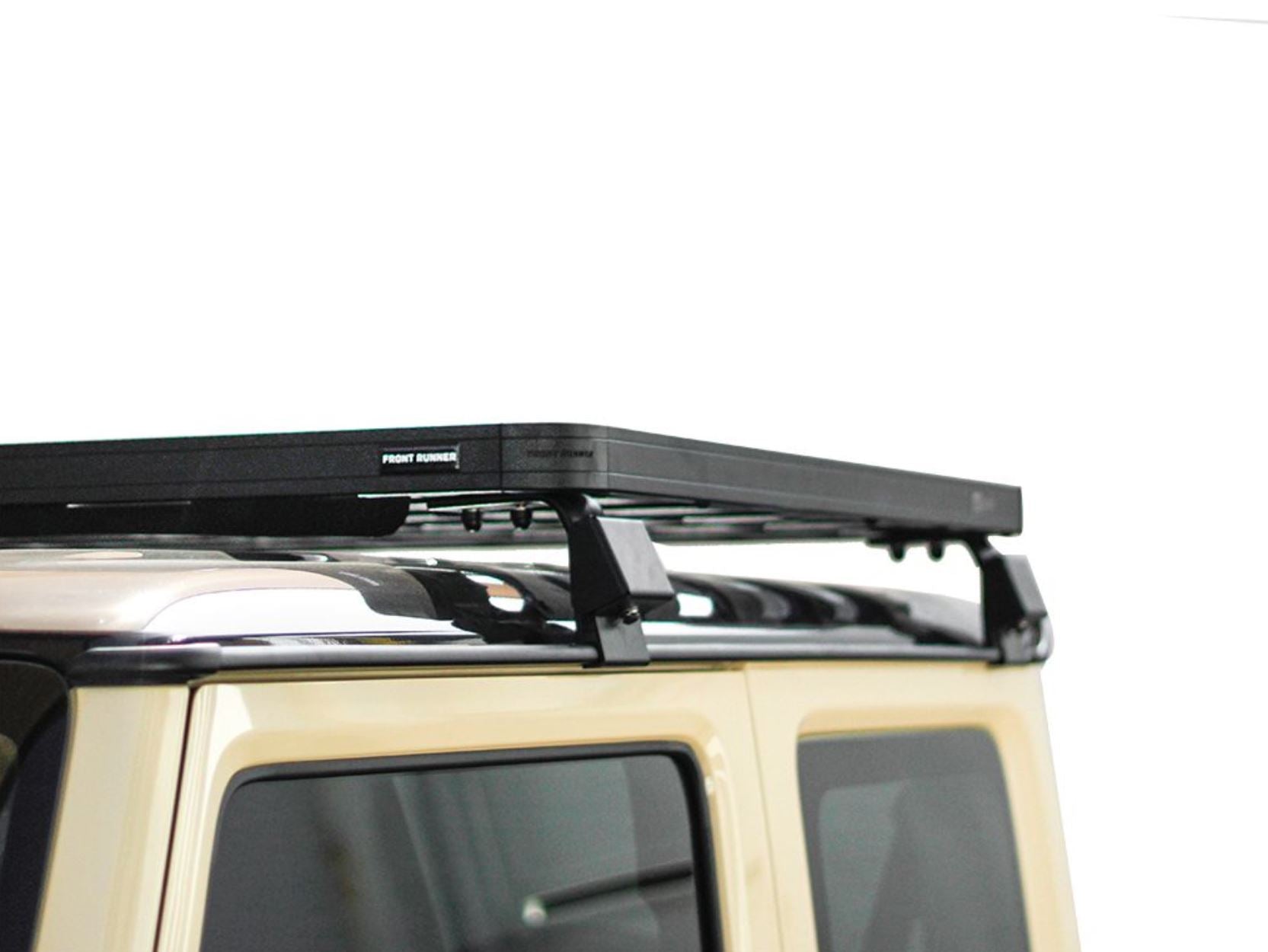

- 2 x LASS102 - No 2 Leg 130mm (Pair)
- 1 x RRSTG06 - Slimline II Tray - 1345mm(W) X 1156mm(L)
- 1 x WDST006 - Wind Deflector 45mm Lip Wide Pair / 1345mm(W)
Material used:
- Black epoxy powder-coated T6 aluminium
- 3CR12 Stainless Steel
Approximate Installed Weight: 22kg (49lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
For those wanting to add a Front Runner Under Roof Rack Camping Table Storage Bracket to securely stow a Front Runner Lightweight Camping Table you will need 2 x Pair of Front Runner No. 3 Taller Height 155mm Legs to achieve the minimum recommended clearance of 65mm (2.5") between the underside of the rack and the crown of the roof.
Consisting of:
2x LASS102 - No 2 Leg 130mm (Pair)
1x LASS121 - Universal Pinch Weld Strip / 6 Piece
1x RRSTG06 - SLII Tray - 1345mm(W)X1156mm(L)
1x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 23.77kg (52.4lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 455mm (18")
Length: 1730mm (68")
Height: 260mm (10")
Shipping Weight:
Weight: 25.69kg (57lbs)
