Description
A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for the Suzuki Jimny & equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
Sealed motor and geartrain allows for flawless operations in extreme conditions
Permanent magnet motor provides heavy duty torque for increased pulling power
Cam action disengages gears for near silent free-spooling
Mechanical and dynamic brake offers increased control and prevents rollback
Specification for CW-XD6L
Single line rated pull: 6,000lb(2,725kg)
Motor: 12V 2.5hp permanent magnet
Control: Handlebar Mini-Rocker, Wireless remote control Included
Gear train: 3-stage planetary
Gear ratio: 147:1
Clutch: Roller-disc Full load automatic
Braking Action: Automatic brake in the motor bracket. No heat on through drum during operation
Drum Size: Φ51mmx208mm
Mounting bolt pattern: 76 x 254mm
Overall Dimensions: 473mmx115mmx119mm
Synthetic Rope: 6.5mmx24m

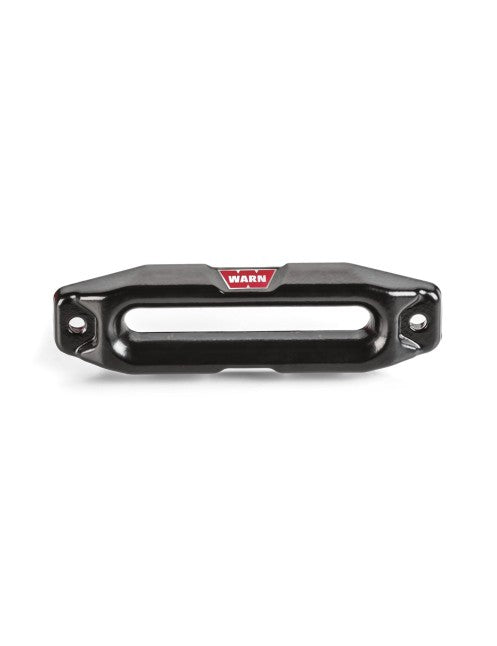

Hawse: Aluminum hawse
Shipping Weight: 12.5kg
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current @12V
0 (0) 13.8 (4.2) 15 Amps
2000 (907) 9.5 (2.9) 125 Amps
4000 (1814) 7.2 (2.2)190 Amps
6000 (2721) 4.6 (1.4) 240 Amps
**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
