Description
AVO Turboworld Suzuki Jimny 2019+ JB74W Oil Cooler Kit for 1.5L is a highly designed solution for your cooling needs. Designed for maximum efficiency and reliability and has been thoroughly tested under the most severe conditions including the Japanese mountains.
Not only the oil cooler itself, but also the arrangement of the oil cooler to maximize cooling efficiency is carefully considered and engineered.
The oil temperatures will drop over 15 degrees C and the coolant temperature dropped by about 10 degrees C. What we also found was that on hot days and hard driving the coolant temperature would spike up and down in factory trim and this was reduced with the AVO Oil Cooler. The coolant temperature became more stable and consistent.

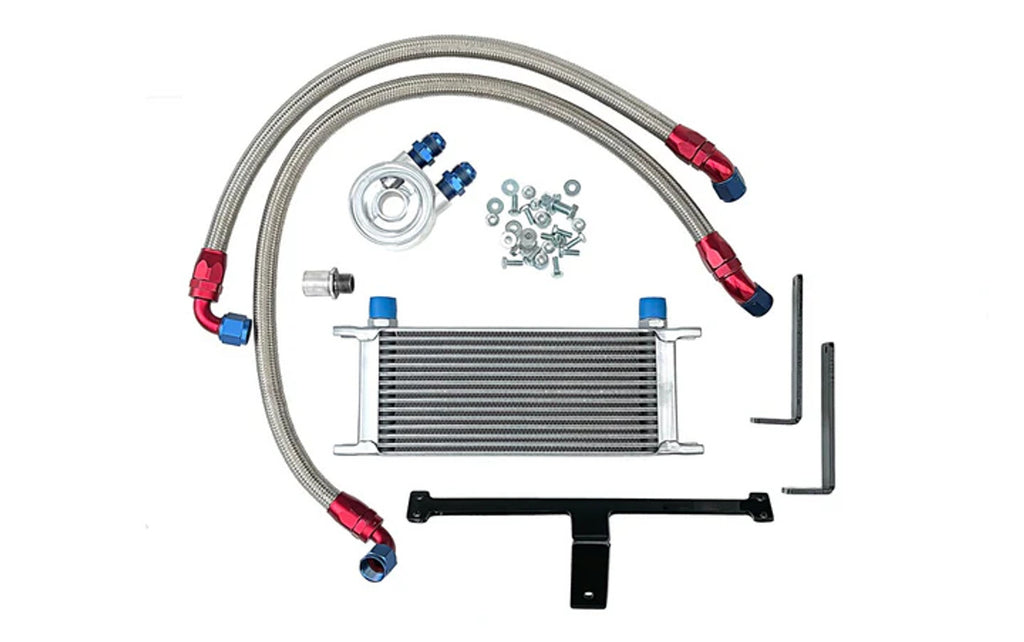

Details of the oil cooler:

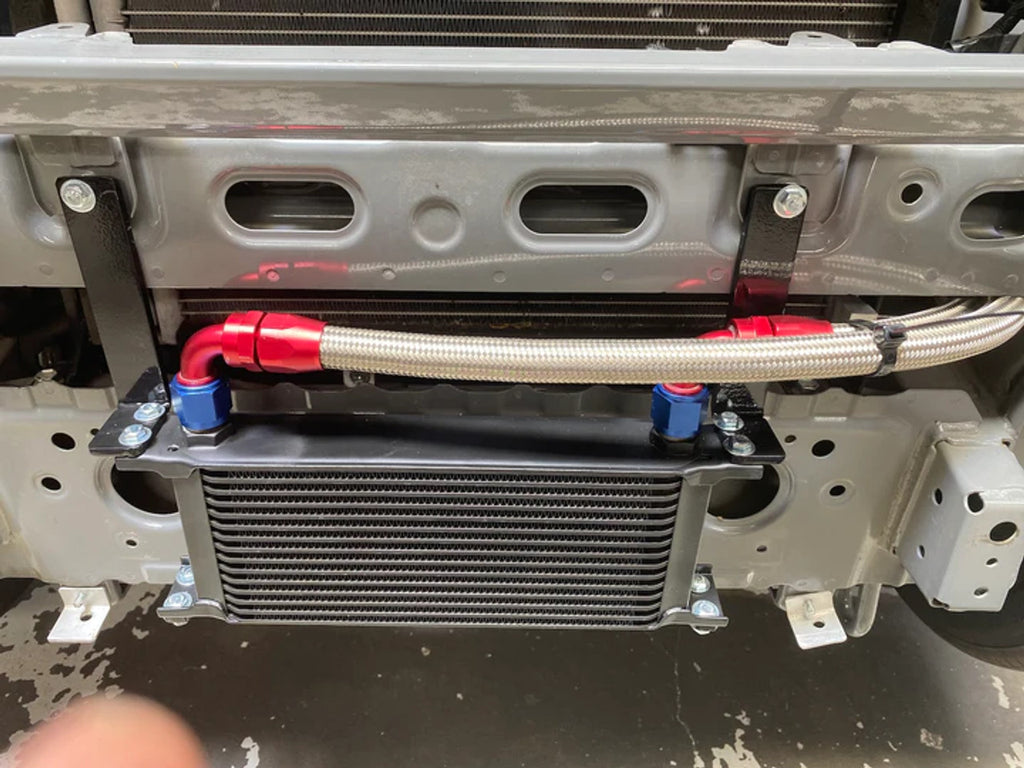

1. The installation position is considered so that it fits inside the bumper.

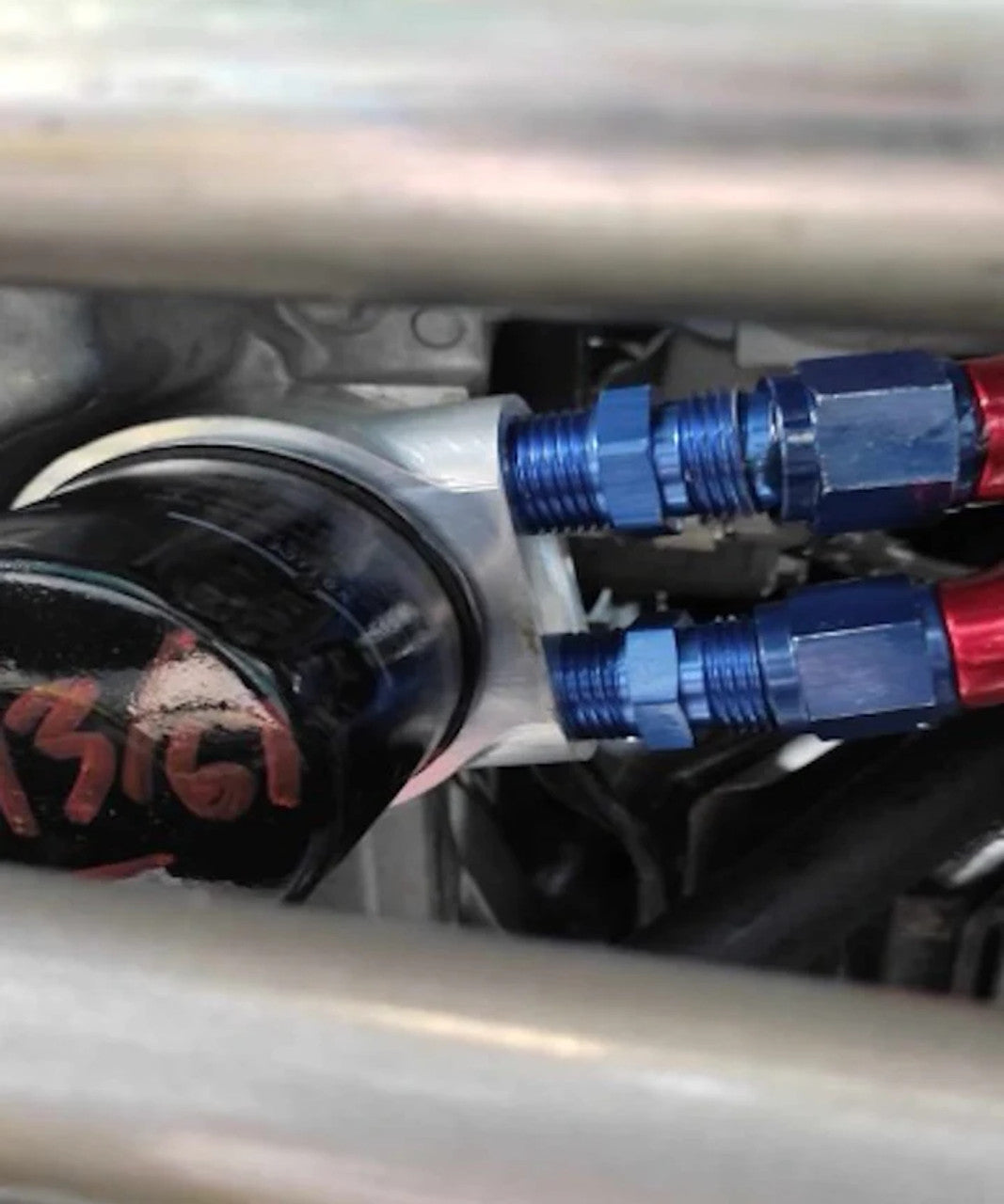

2. Steel line with a swivel built into the accessories for easy installation.
3. The size of the oil cooler. Height 125mm x Length 290mm x Width 50mm
4. 16-row cooling unit
5. Steel mounting bracket.
6. Compatible with AVO turbo kits and N/A cars.
Note: Will not fit with low mounted Winches.
7. The oil cooler body is compatible with the standard bumper.
8. It comes with all the necessary hardware.
9. The amount of engine oil will be an additional 300~500cc from the original value.
