AVO TURBOWORLD Airbox Upgrade Kit with Intake Pipe - Suits Aftermarket Snorkels (Jimny Models 2018-Current XL, GLX & Lite)

Save $77
AVO TurboworldSKU: WJ219F02ABOXT

$693 $770
 10 weekly payments of $69.30 learn more

OzJimny's Price Pledge Badge

Seen a better price somewhere else?

Simply hit the Add to Quote Button above, share the link to a competitors website showing the identical product or upload a competitors written quote and we pledge to send you a more competitive quote within 24 business hours.


AVO Turboworld, one of the leading producers of aftermarket performance products for Subaru, Mazda and Nissan, and the manufacturer of many innovative turbo systems and related parts, has turned an engineering eye to the 2018+ Suzuki Jimny.

They looked at the performance of the 1.5 litre normally aspirated engine in this chassis, it became obvious that the factory airbox was not designed for performance, to say the least!

If you want some more intake sound and intake surge especially under full throttle, then this is the kit.  This kit is designed for 4WDing and for the guys that have a snorkel fitted to their vehicle.  On the dyno, AVO observed performance gains over 4 kilowatts at the wheels and the smoothness over the open pod filter and standard airbox was amazing.  The air/fuel ratio line was dead flat and we believe it is due to eliminating the convoluted factory throttle body hose causing air turbulence.  To come up with the result keep in mind that I did testing all on the same dyno, same day within 1 hour and was firstly with the standard box, then pod filter with intake and then finished with the upgrade airbox system.  The same tune remained in each of the 3 dynos.

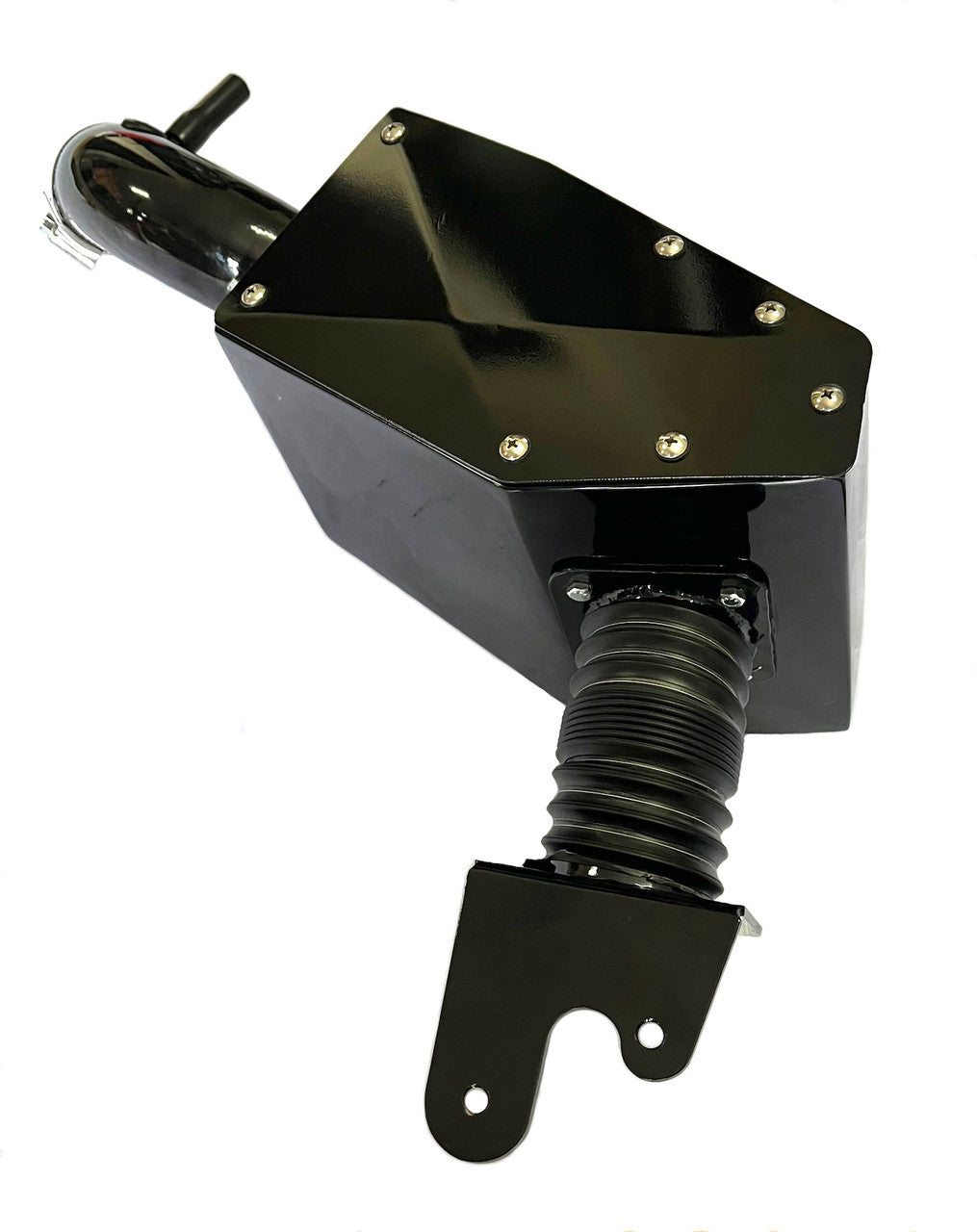

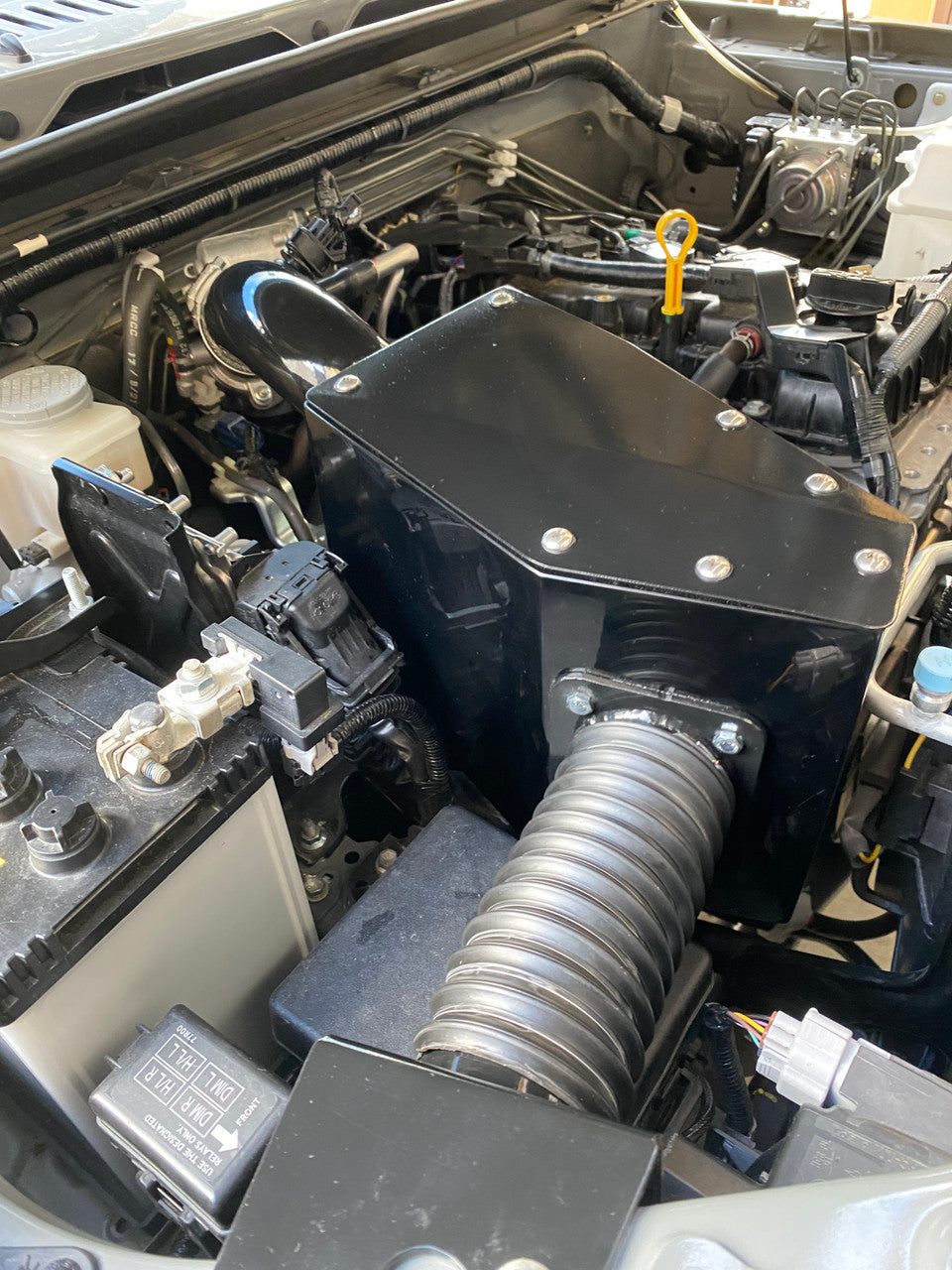

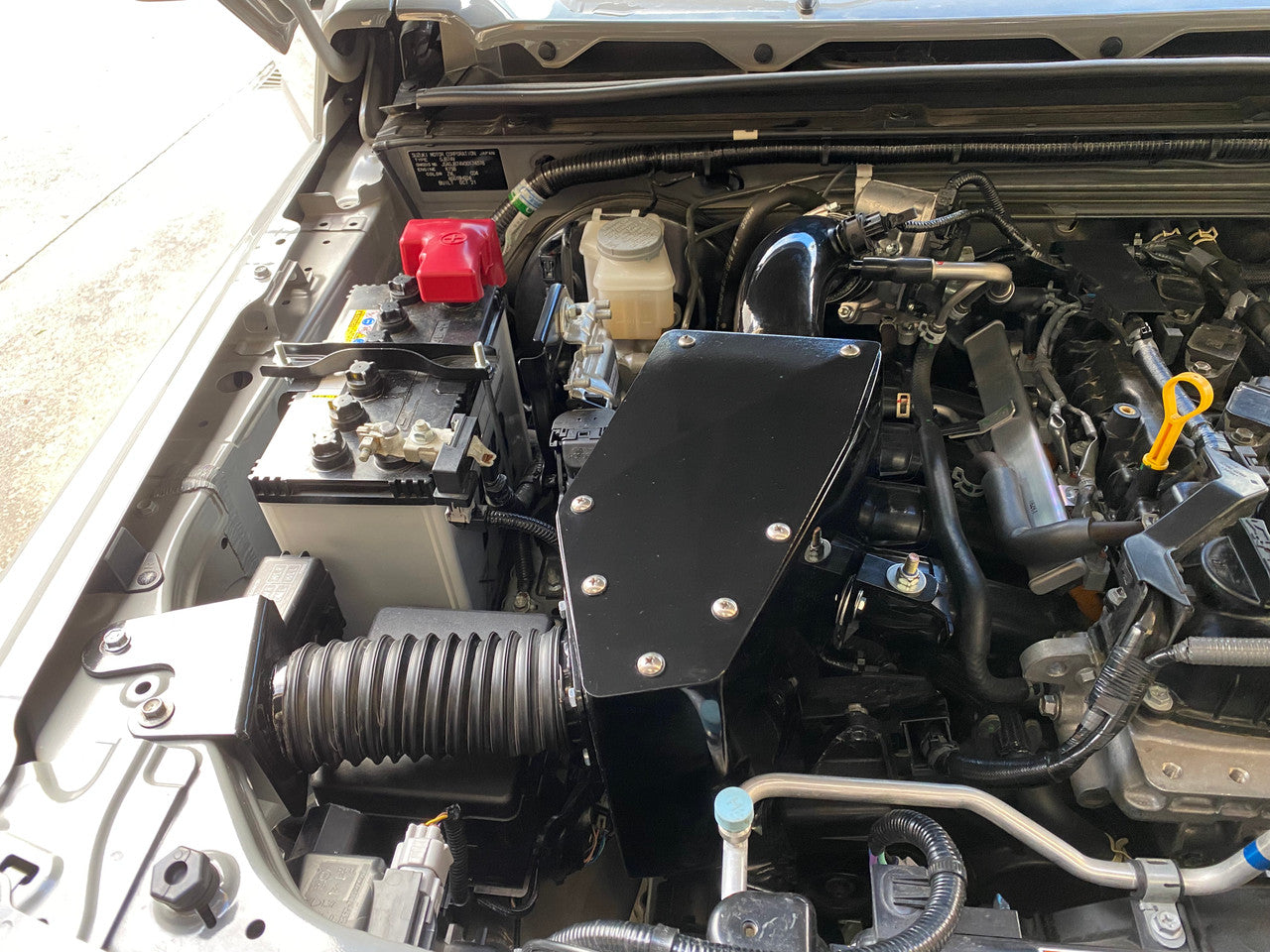

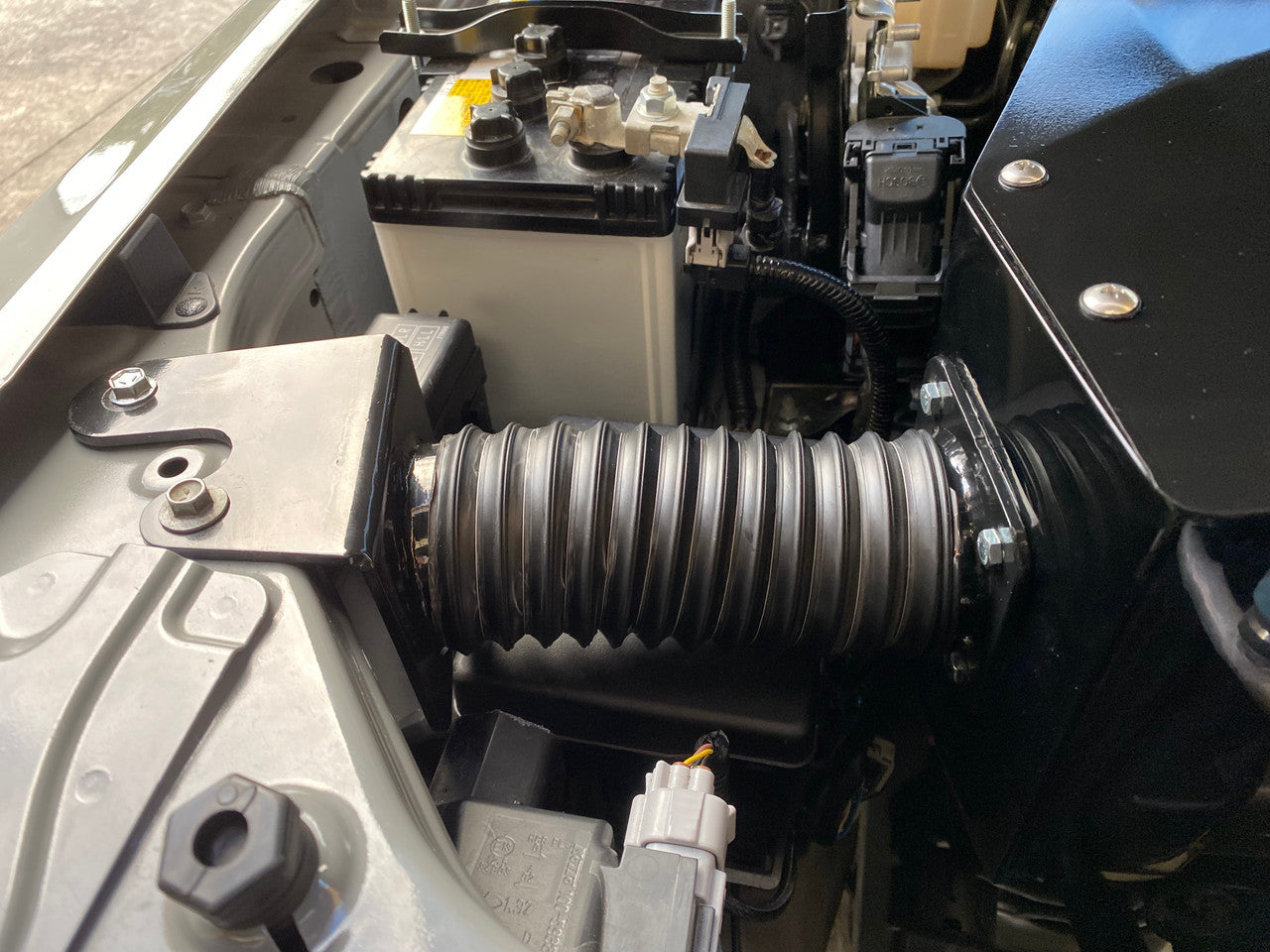

The specially designed box encloses the AVO pod filter inside and is totally sealed off from water and contaminants.  There is a larger steel pipe that runs from the exit of the box to the front of the throttle body allowing a larger volume of air to be delivered to the engine and in an undisturbed state.  The entry of the box has a flexible duct that comes from the front corner of the bonnet.  To help running a larger flexible ducting we also manufactured a large steel adapter to bolt to the body.

AVO uses a washable and fully re-usable hi-flow pod filter that has been designed specifically from sturdy cotton fibre.  It increases air flow, allowing the engine to make more power and torque.  Yet thanks to a special dry film it has equal rates of engine protection.  This dry film design does not use oil like most other performance filters, which keeps your intake from being damaged from excess oil.  You simply need to soak it in warm, soapy water, rinse it out with water, and then let it air dry.

Kit comes with everything that is required right down to the last silicone hose, hose clamp, rubber grommet and flexible ducting.

Will get more more benefits if completed in conjunction with an ECU Tune.
