Description

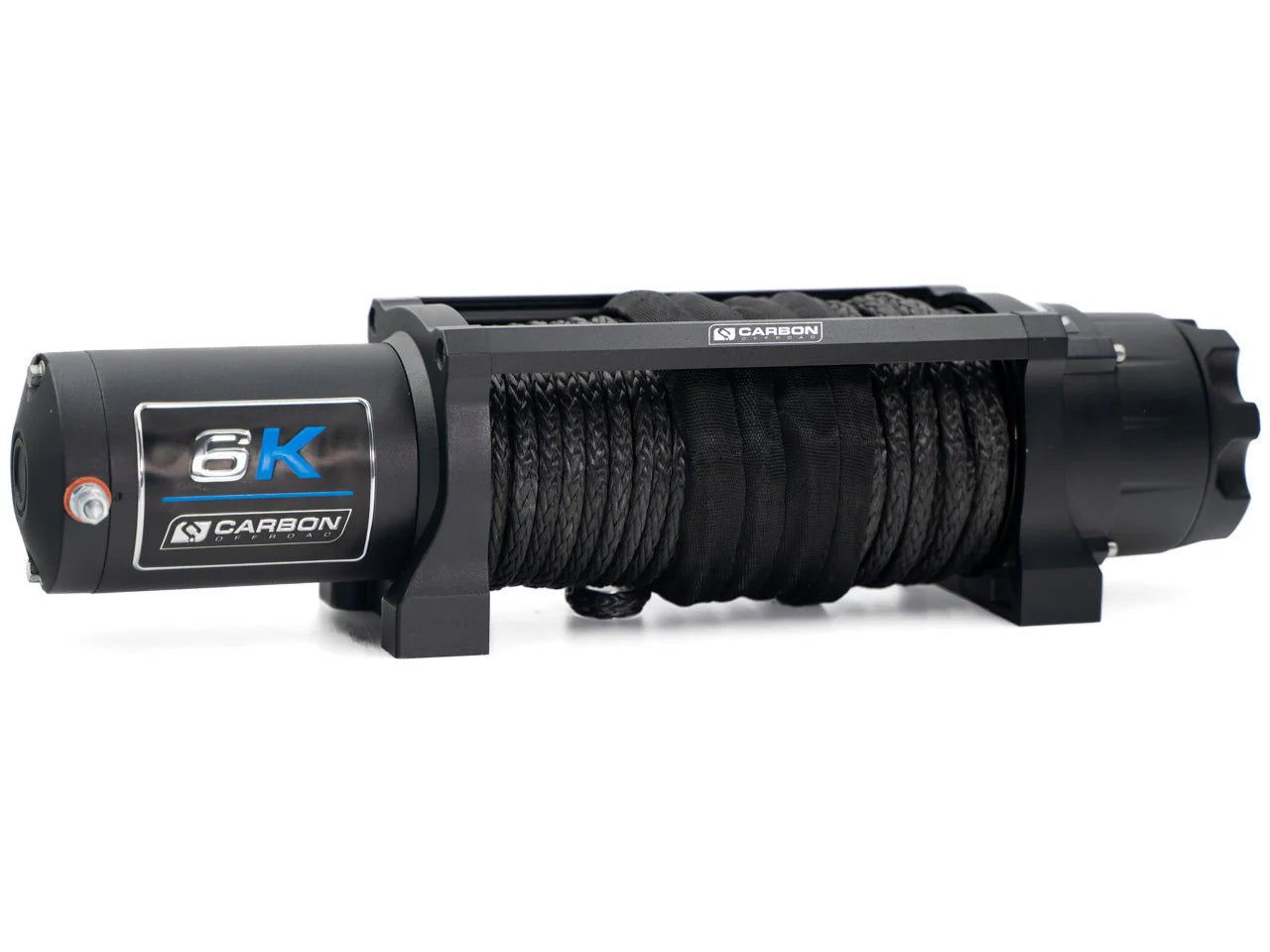

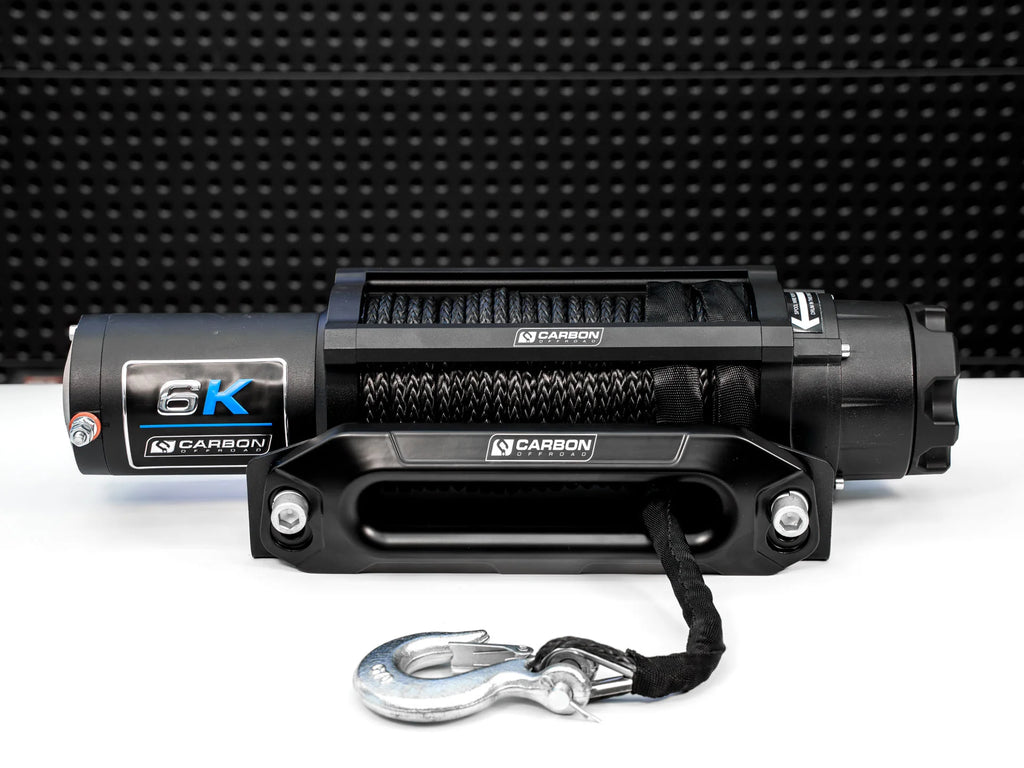

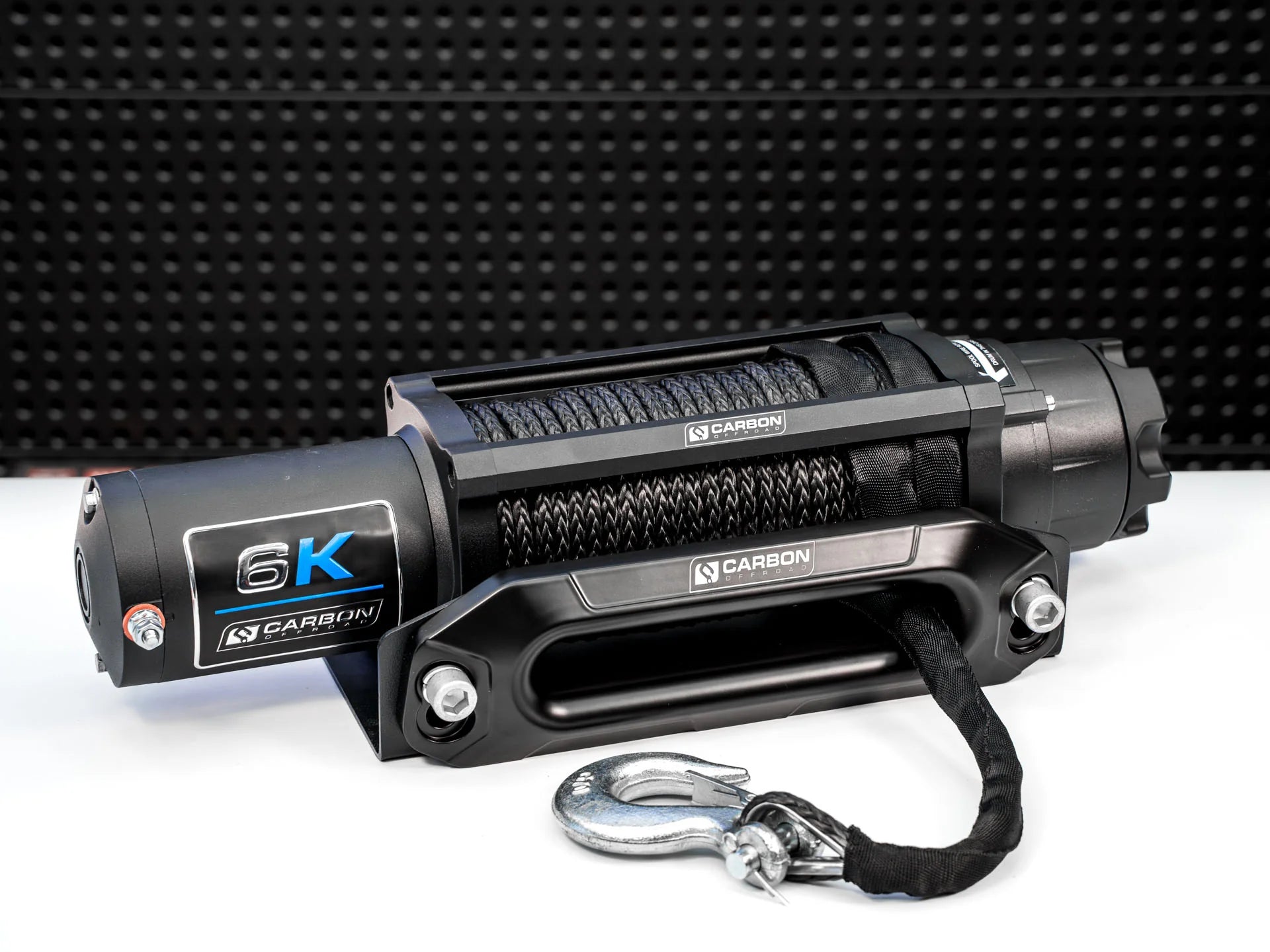

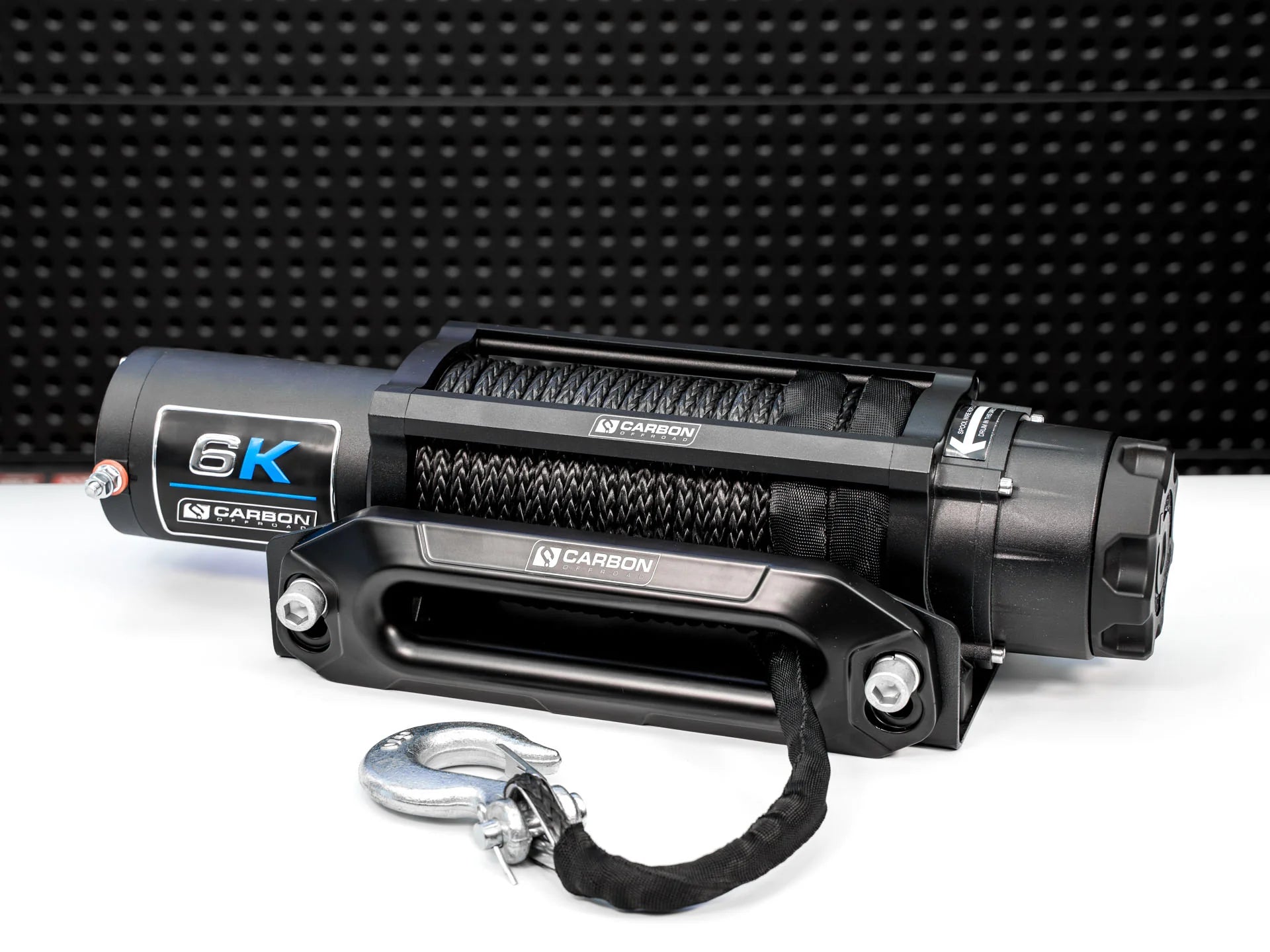

A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for the Suzuki Jimny & equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
Sealed motor and geartrain allows for flawless operations in extreme conditions
Permanent magnet motor provides heavy duty torque for increased pulling power

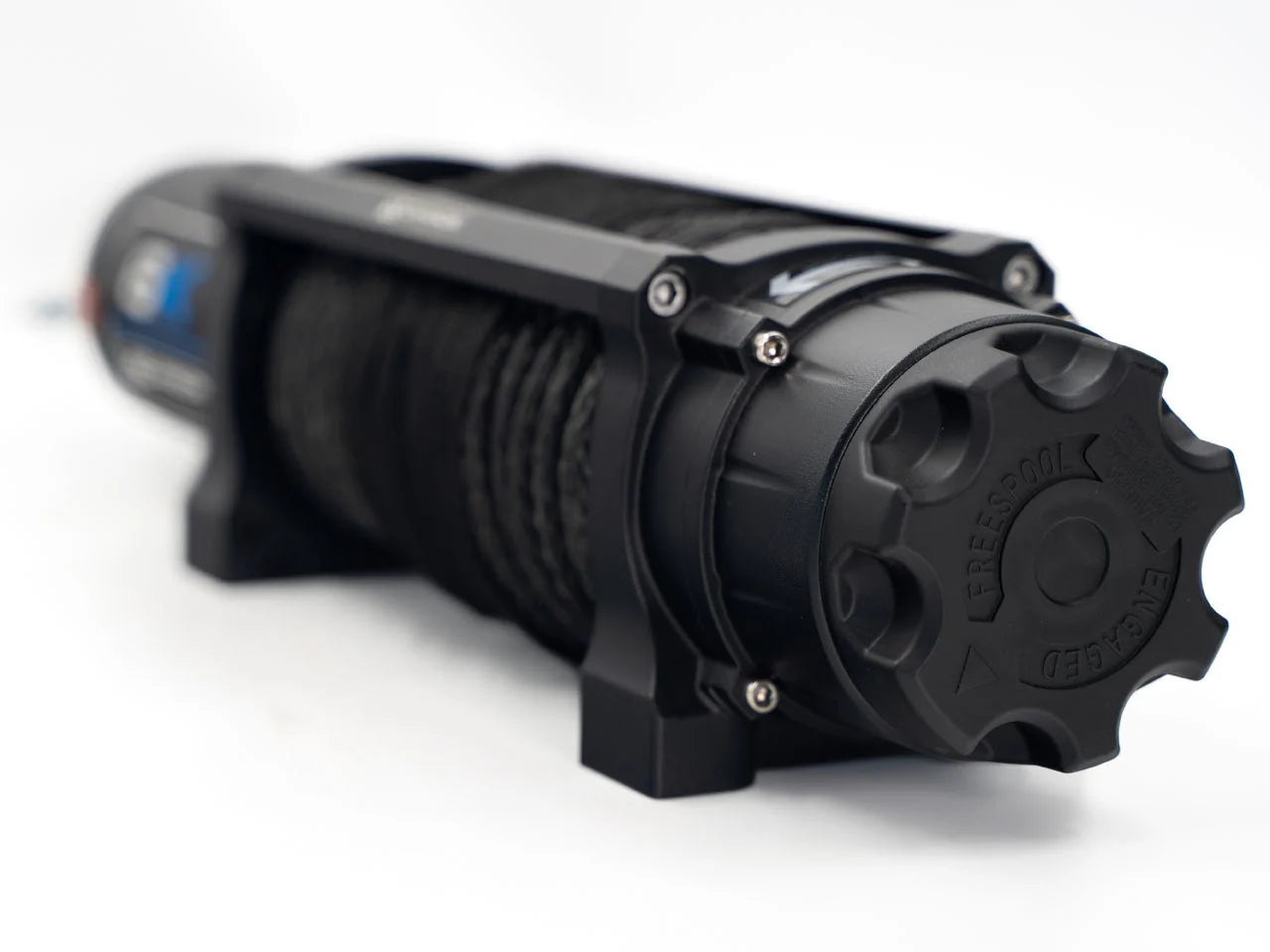

Cam action disengages gears for near silent free-spooling
Mechanical and dynamic brake offers increased control and prevents rollback
Specification for the CW-XD6L
- Rated line pull: 6000 lbs, (2725kg) single-line

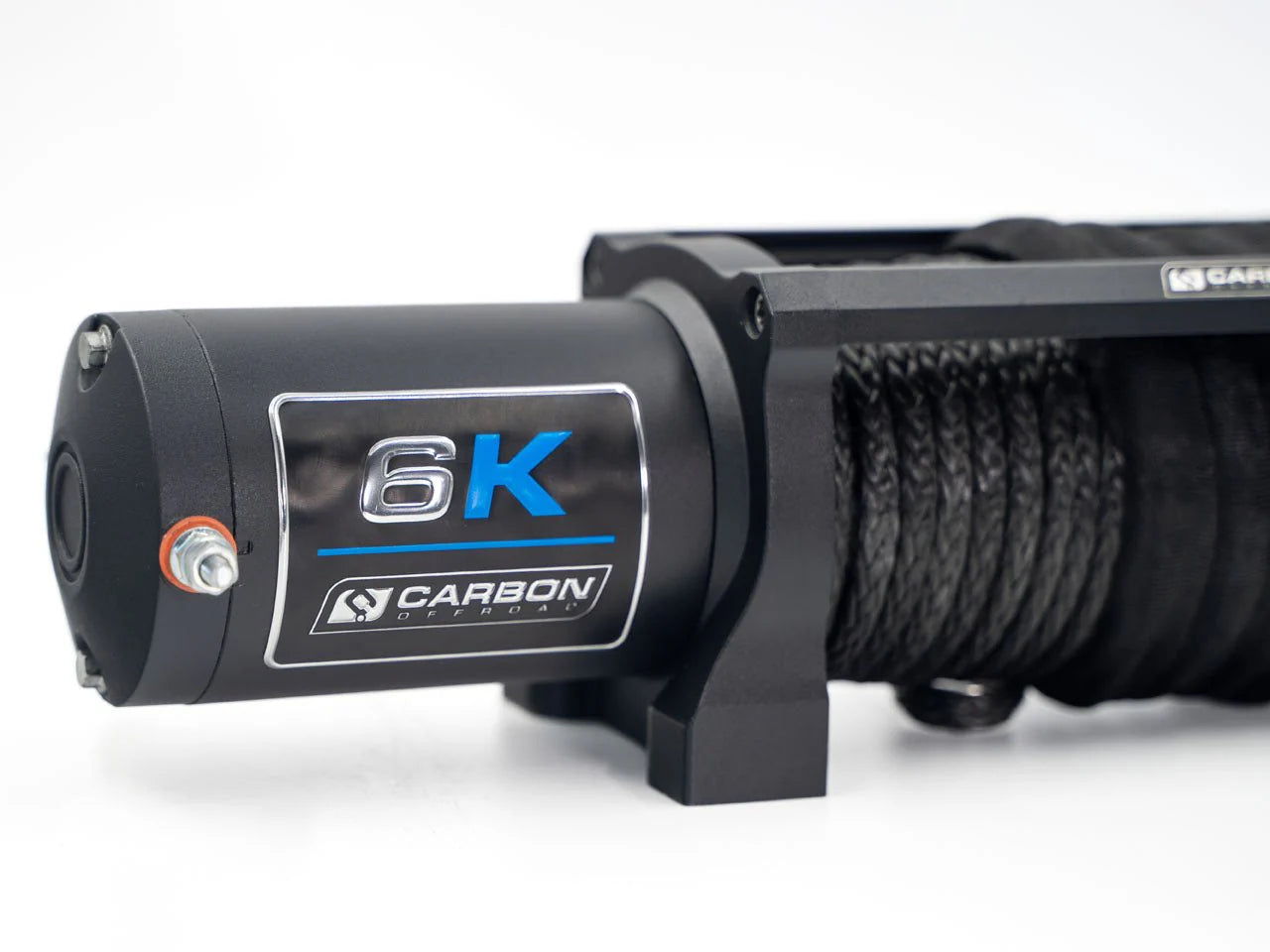

- Motor: 12V DC 2.5 HP permanent magnet
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket
- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- IP Rating: IP66 for winch and solenoid (excludes remote control and switch)

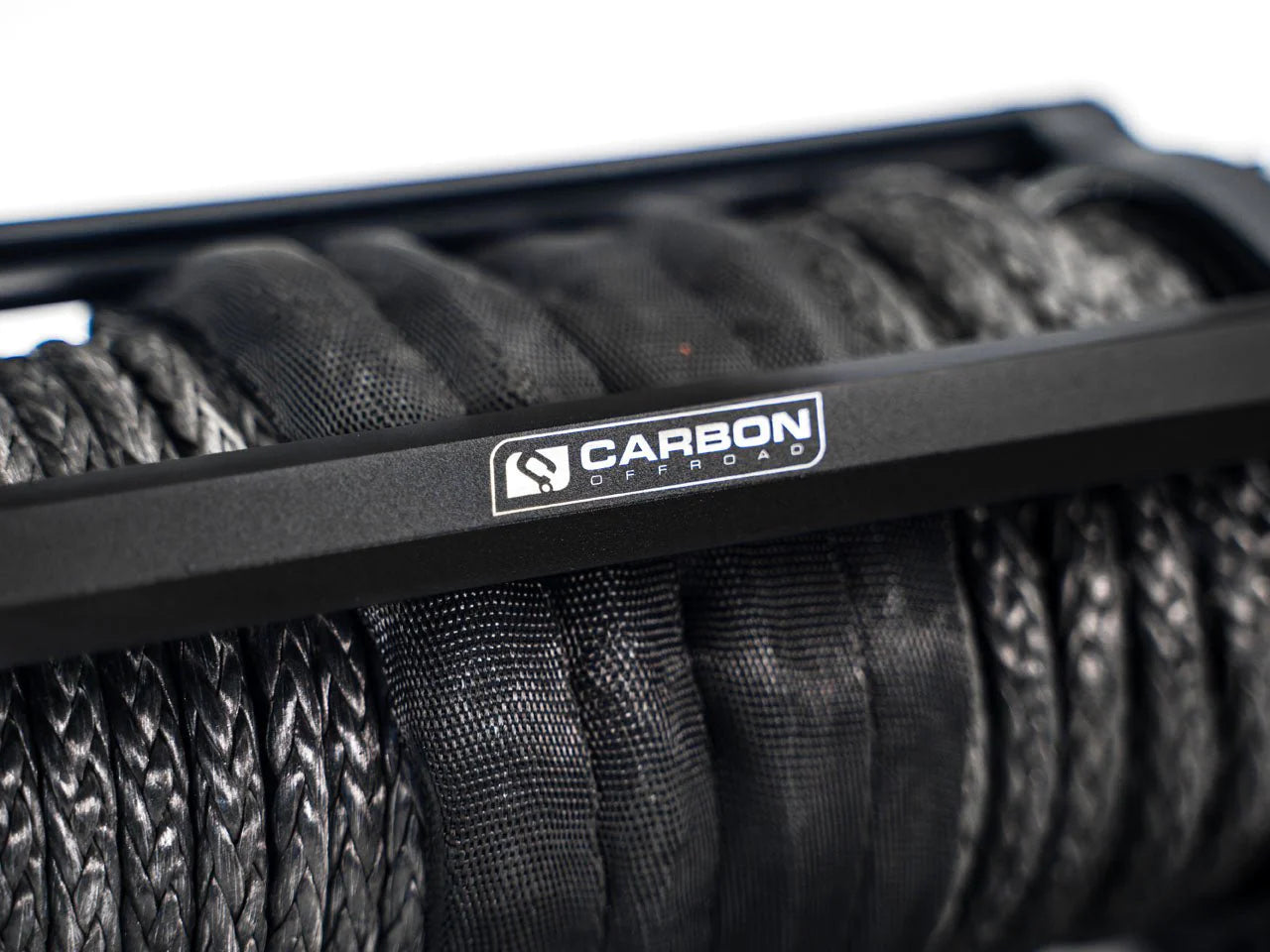

- Synthetic Rope: 26m x 6.5mm diameter

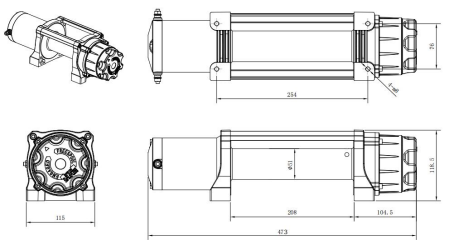

- Drum Diameter/Length: 51mm x 208mm
- Mounting Bolt Pattern: 254mm x 76mm
- Recommended Battery: 650 CCA minimum for winching
- Winch Dimensions (L x W x H): 473 x 125 x 120mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
Speed & Performance Breakdown
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 13.8(4.2) | 15 | 1/6000(2725) |
| 2000(1814) | 9.5(2.9) | 125 | 2/5350(2430) |
| 4000(3629) | 7.2(2.2) | 190 | 3/4780(2170) |
| 6000(5443) | 4.6(1.4) | 240 | 4/4270(1940) |
Winch Shipping Dimensions:
12.5kgs 54x17x23cms
